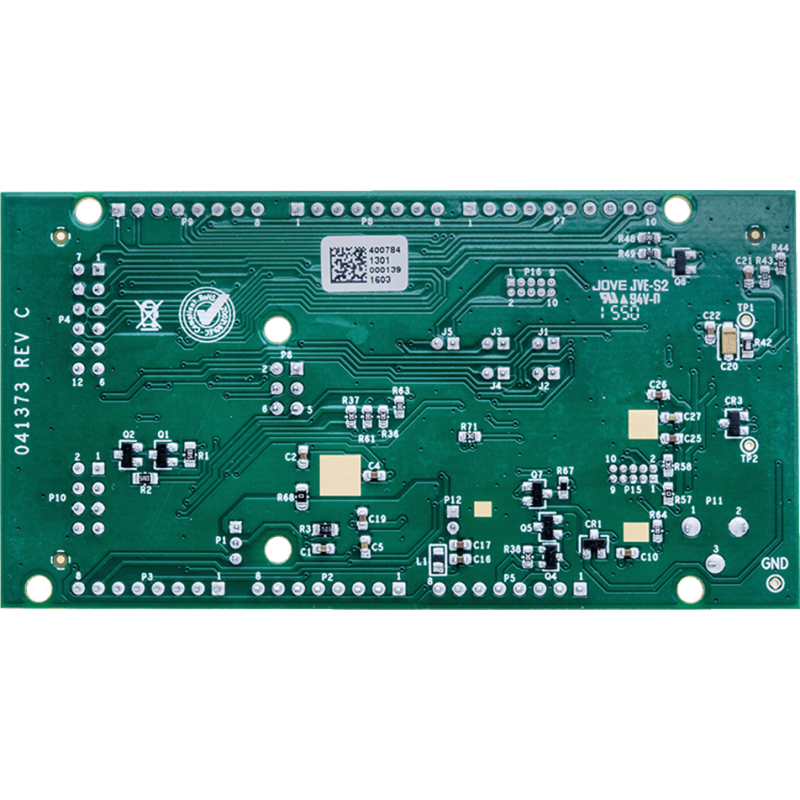

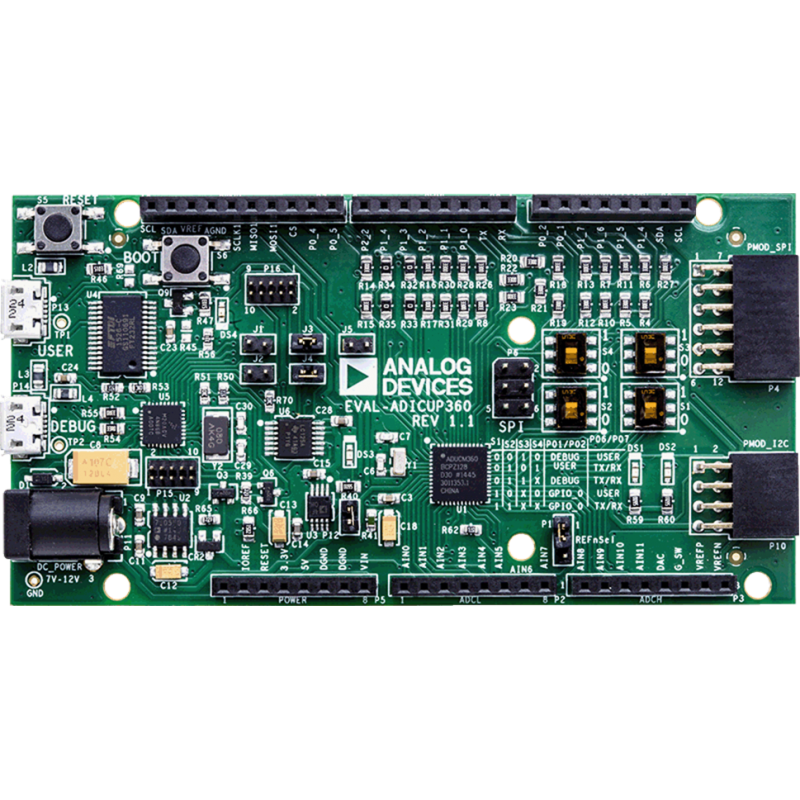

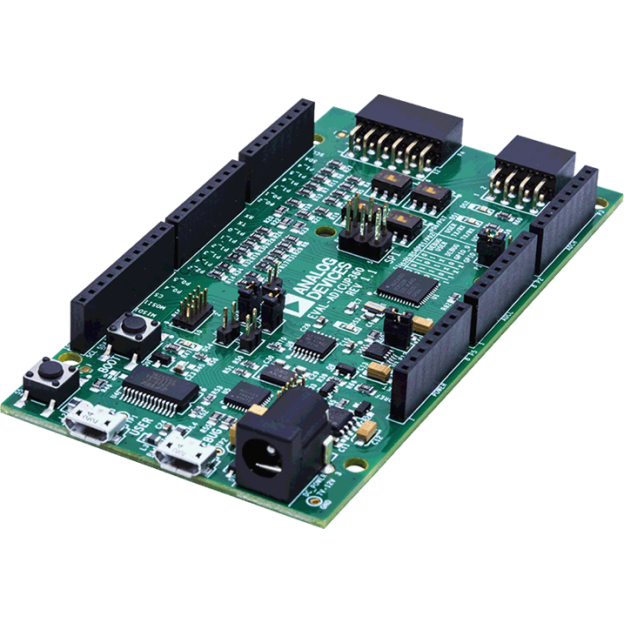

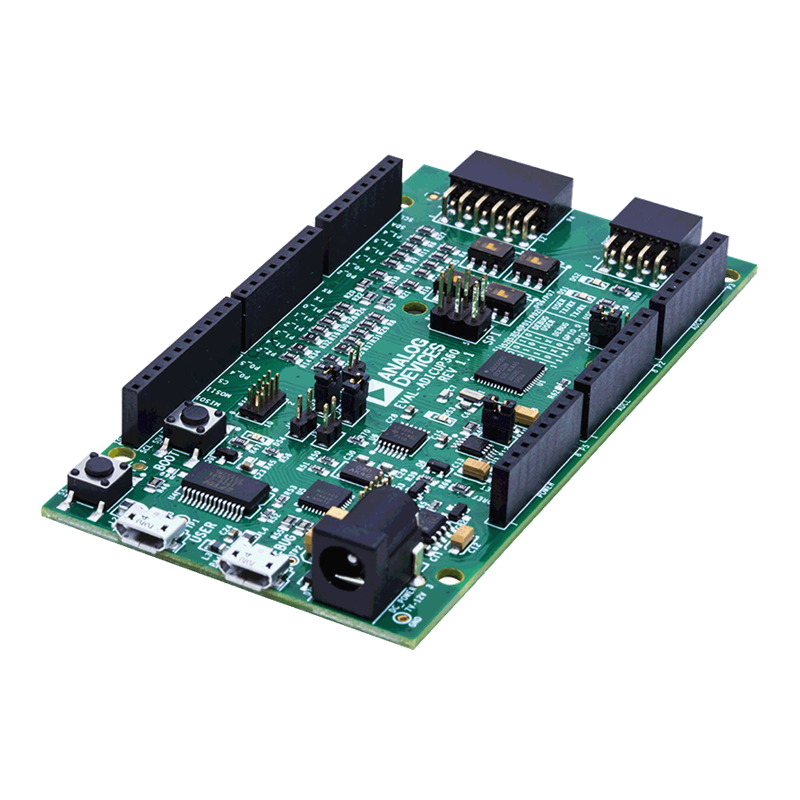

EVAL-ADICUP360

Overview

The EVAL-ADICUP360 is an Arduino-like platform based on the ADuCM360 fully integrated, 3.9 kSPS, 24-bit data acquisition system that incorporates dual high performance, multichannel sigma-delta (Σ-Δ) analog-to-digital converters (ADCs), a 32-bit ARM Cortex™-M3 processor, and Flash/EE memory on a single chip. The platform has an Arduino-Due compatible form factor and has two additional PMOD connectors. It is accompanied by an Eclipse based development environment.

Features

• Compatible with Arduino and PMOD form factors
• Low Power ARM Cortex M3
• Open Source IDE Tools
• No External Debugger/Emulator Tools needed

Applications

1. Blinking LEDs Demo
2. Command Line Interpreter Demo
3. High Accuracy Temperature Demo (with EVAL-ADT7420-PMDZ)
4. High Resolution Accelerometer Demo (with EVAL-ADXL355-PMDZ)
5. Low Power Accelerometer Demo (with EVAL-ADXL362-ARDZ)
6. PMOD Accelerometer Demo (with PmodACL2 from Digilent)
7. Weigh Scale Demo (with EVAL-CN0216-ARDZ)
8. pH Monitor with Temperature Compensation Demo (with EVAL-CN0326-PMDZ)
9. Data Acquisition for Input Current Demo (with EVAL-CN0336-PMDZ)
10. RTD Temperature Measurement Demo (with EVAL-CN0337-PMDZ)
11. CO2 Gas Measurement Demo (with EVAL-CN0338-ARDZ)
12. CO Toxic Gas Measurement Demo (with EVAL-CN0357-ARDZ)
13. Universal Multichannel Thermocouple Measurement(Digital Output) Demo (with EVAL-CN0391-ARDZ)
14. Universal Multichannel Thermocouple Measurement(Analog Output) Demo (with EVAL-CN0394-ARDZ)
15. Volatile Organic Compound (VOC) Gas Detection Demo (with EVAL-CN0395-ARDZ)
16. Dual Toxic Gas Measurement Demo (with EVAL-CN0396-ARDZ)
17. Visible Light Detection/Measurement Demo (with EVAL-CN0397-ARDZ)
18. Soil Moisture and pH Measurement Demo (with EVAL-CN0398-ARDZ)
19. Turbidity Measurement Demo (with EVAL-CN0409-ARDZ)
20. Total Dissolved Solids Measurement Demo (with EVAL-CN0411-ARDZ)
